Chapter 8 QUADRILATERALS Solutions

Exercise 8.1

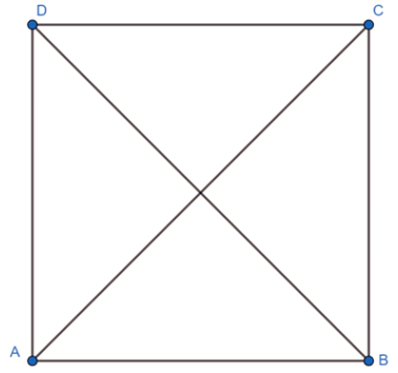

Q1. If the diagonals of a parallelogram are equal, then show that it is a rectangle.
Ans:

Given that,
AC = BD
To Prove:  ABCD is a rectangle if the diagonals of a parallelogram are equal.
To show ABCD is a rectangle, we have to prove that one of its interior angles is right-angled.
Proof,
In ΔABC and ΔBAD,
AB = BA (Common)
BC = AD (Opposite sides of a parallelogram are equal)
AC = BD (Given)
Therefore, ΔABC ≅ ΔBAD [SSS congruency]
∠A = ∠B [Corresponding parts of Congruent Triangles]
also,
∠A+∠B = 180° (Sum of the angles on the same side of the transversal)
⇒ 2∠A = 180°
⇒ ∠A = 90° = ∠B
Therefore, ABCD is a rectangle.
Hence Proved.

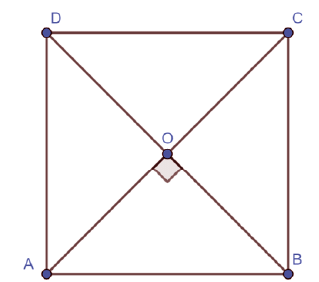

Q2. Show that the diagonals of a square are equal and bisect each other at right angles.
Ans: Given: A square is given.
To Prove: The diagonals of a square are the same and bisect each other at 90^o
Proof: Consider ABCD to be a square.

Consider the diagonals AC and BD intersect each other at a point O.
We have to show that the diagonals of a square are equal and bisect each other at right angles,
AC  =  BD, OA  =  OC, OB  =  OD .
In ΔABC and ΔDCB,
AB = DC (Sides of the square are equal)
∠ABC = ∠DCB (All the interior angles are of the value 90^o)
BC = CB (Common side)
∴ ΔABC ≅ ΔDCB (By SAS congruency)
∴ AC= DB (By CPCT)
Hence, the diagonals of a square are equal in length.
In ΔAOB and ΔCOD,
∠AOB = ∠COD (Vertically opposite angles)
∠ABO = ∠CDO (Alternate interior angles)
AB = CD (Sides of a square are always equal)
∴ ΔAOB ≅ ΔCOD (By AAS congruence rule)
∴ AO = CO and OB = OD (By CPCT)
As a result, the diagonals of a square are bisected.
In ΔAOB and ΔCOB,
Because we already established that diagonals intersect each other,
AO = CO
AB = CB (Sides of a square are equal)
BO = BO (Common)
∴ ΔAOB ≅ ΔCOB (By SSS congruency)
∴ ∠AOB = ∠COB (By CPCT)
However, ∠AOB + ∠COB = 180° (Linear pair)
∠AOB +∠AOB = 180°
2 x ∠AOB = 180°
∠AOB = 90°

As a result, the diagonals of a square are at right angles to each other.

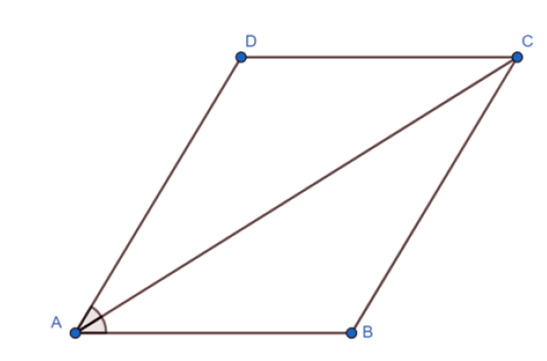

Q3. Diagonal AC of a parallelogram ABCD bisects ∠A (see Fig.). Show that

Show that
(i) It is bisecting ∠C also,
(ii) ABCD is a rhombus

Ans: Given: Diagonal AC of a parallelogram ABCD is bisecting ∠A
(i) ABCD is a parallelogram.
∠DAC = ∠BCA (Alternate interior angles) … (1)
And ∠BAC = ∠DCA (Alternate interior angles) … (2)
However, it is given that AC is bisecting ∠A
∠DAC = ∠BAC … (3)
Putting the values of eq (1) and eq (2) in eq (3)
∠BCA = ∠DCA
Hence, AC is bisecting ∠C
(ii) From Equation (4), we obtain
∠DAC = ∠DCA
DA = DC (Side opposite to equal angles are equal)
However, DA = BC and AB = CD (Opposite sides of a parallelogram)
AB = BC = CD = DA
As a result, ABCD is a rhombus.

Q4. ABCD is a rectangle in which diagonal AC bisects ∠A as well as ∠C . Show that:
(i) ABCD is a square
(ii) Diagonal BD bisects ∠B as well as ∠D.
Ans: Given: ABCD is a rectangle where the diagonal AC bisects ∠A as well as ∠C.

(i) It is given that ABCD is a square.
∠A = ∠C
⇒ 1/2 ∠A = 1/2 ∠C (AC bisects ∠A and ∠C)
⇒ ∠DAC = 1/2 ∠DCA
CD = DA (Sides that are opposite to the equal angles are also equal)
Also, DA = BC and AB = CD (Opposite sides of the rectangle are same)
AB = BC = CD = DA
ABCD is a rectangle with equal sides on all sides.
Hence, ABCD is a square.
(ii) Let us now join BD.
In ΔBCD,
BC = CD (Sides of a square are equal to each other)
∠CDB = ∠CBD (Angles opposite to equal sides are equal)
However, ∠CDB = ∠ABD (Alternate interior angles for AB || CD)
∠CBD = ∠ABD
BD bisects ∠B.
Also, ∠CBD = ∠ADB (Alternate interior angles for BC || AD)
∠CDB = ∠ABD
BD bisects ∠D and ∠B.

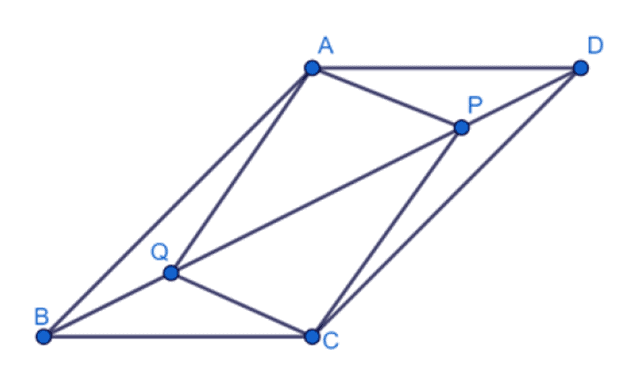

Q5. In parallelogram ABCD, two points P and Q are taken on diagonal BD such that DP = BQ (see the given figure).

Show that:
(i) ΔAPD ≅ ΔCQB

(ii) AP = CQ

(iii) ΔAQB ≅ ΔCPD

(iv) AQ = CP

(v) APCQ is a Parallelogram
Ans:
(i) In ΔAPD and ΔCQB,
AD = CB (Opposite sides of the parallelogram ABCD)
∠ADP = ∠CBQ (Alternate interior angles for BC || AD)
DP = BQ (Given)
∴ ΔAPD ≅ ΔCQB (Using SAS congruence rule)
(ii) As we had observed that ΔAPD ≅ ΔCQB,
∴ AP= CQ (CPCT)
(iii) In ΔAQB and ΔCPD,
∠ABQ = ∠CDP (Alternate interior angles for AB || CD )
AB = CD (Opposite sides of parallelogram ABCD)
BQ = DP (Given)
∴ ΔAQB ≅ ΔCPD (Using SAS congruence rule)
(iv) Since we had observed that ΔAQB ≅ ΔCPD,
∴ AQ = CP (CPCT)
(v) From the results obtained in (ii) and (iv),
AQ = CP and AP = CQ
APCQ is a parallelogram because the opposite sides of the quadrilateral are equal.

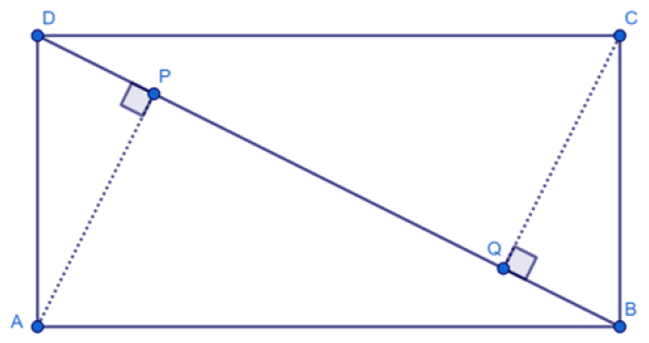

Q6. ABCD is a parallelogram and AP and CQ are perpendiculars from vertices A and C on diagonal BD (See the given figure).
Show that
(i) ΔAPB ≅ ΔCQD
(ii) AP = CQ
Ans:
(i) In ΔAPB and ΔCQD,
∠APB = ∠CQD (Each 90°)
AB = CD (The opposite sides of a parallelogram ABCD)
∠ABP = ∠CDQ (Alternate interior angles for AB || CD)
∴ ΔAPB ≅ ΔCQD (By AAS congruency)
(ii) By using
∴ ΔAPB ≅ ΔCQD , we obtain
AP = CQ (By CPCT)

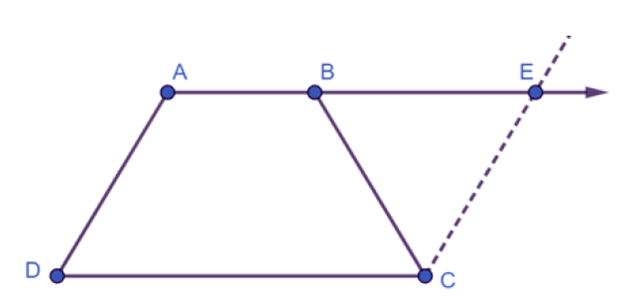

Q7. ABCD is a trapezium in which AB || CD and AD = BC (see the given figure).
Show that
(i) ∠A = ∠B
(ii) ∠C = ∠D
(iii) ΔABC ≅ ΔBAD
(iv) diagonal AC = diagonal BD
(Hint: Extend AB and draw a line through C parallel to DA intersecting AB produced at E.)
Ans: Let us extend AB by drawing a line through C, which is parallel to AD, intersecting AE at point E. It is clear that AECD is a parallelogram.
(i) AD = CE (Opposite sides of parallelogram AECD)
However, AD = BC (Given)
Therefore, BC = CE
∠CEB = ∠CBE (Angle opposite to the equal sides are also equal)
Considering parallel lines AD and CE.
AE is the transversal line for them (Angles on a same side of transversal)
(Using the relation ∠CEB = ∠CBE) … (1)
However,  ∠CBE +  ∠CBA  = 180° (Linear pair angles) … (2)
From Equations (1) and (2), we obtain ∠A = ∠B
(ii) AB || CD
Also, ∠C + ∠B = 180° (Angles on a same side of a transversal)
∴ ∠A + ∠D = ∠C + ∠B
However, ∠A = ∠B (Using the result obtained in (i))
∴ ∠C = ∠D
(iii) In ΔABC and ΔBAD,
AB = BA (Common side)
BC = AD (Given)
∠B = ∠A (Proved before)
∴ ΔABC ≅ ΔBAD (SAS congruence rule)
(iv) We had seen that, ΔABC ≅ ΔBAD
∴ AC= BD (By CPCT)

Exercise 8.2

Q1. ABCD is a quadrilateral in which P, Q, R and S are mid-points of the sides AB, BC, CD and DA (see the given figure). AC is diagonal. Show that:
(i) SR || AC and SR = (1/2) AC
(ii) PQ = SR
(iii) PQRS is a parallelogram.

Ans: Given: ABCD is a quadrilateral
To prove: (i) SR || AC and SR = 1/2 AC
(ii) PQ = SR
(iii) PQRS is a parallelogram.
(i) In ΔADC, S and R are the mid-points of sides AD and CD respectively.
In a triangle, the line segment connecting the midpoints of any two sides is parallel to and half of the third side.
∴ SR || AC and SR = 1/2 AC … (1)
(ii) In ΔABC, P and Q are mid-points of sides AB and BC respectively. Therefore, by using midpoint theorem,
PQ || AC and  PQ = 1/2 AC … (2)
Using Equations (1) and (2), we obtain
PQ || SR and PQ = SR
(iii) From Equation (3), we obtained
PQ || SR and PQ = SR
Clearly, one pair of quadrilateral PQRS opposing sides is parallel and equal. PQRS is thus a parallelogram.

Q2. ABCD is a rhombus and P, Q, R and S are the mid-points of the sides AB, BC, CD and DA respectively. Show that the quadrilateral PQRS is a rectangle.
Ans:

Given: ABCD is a rhombus and P, Q, R and S are the mid-points of the sides AB, BC, CD and DA, respectively.
To Prove: PQRS is a rectangle.
Construction:
Join AC and BD.
Proof:
In ΔDRS and ΔBPQ,
DS = BQ (Halves of the opposite sides of the rhombus)
∠SDR = ∠QBP (Opposite angles of the rhombus)
DR = BP (Halves of the opposite sides of the rhombus)
ΔDRS ≅ ΔBPQ [SAS congruency]
RS = PQ [CPCT]———————- (i)
In ΔQCR and ΔSAP,
RC = PA (Halves of the opposite sides of the rhombus)
∠RCQ = ∠PAS (Opposite angles of the rhombus)
CQ = AS (Halves of the opposite sides of the rhombus)
ΔQCR ≅ ΔSAP [SAS congruency]
RQ = SP [CPCT]———————- (ii)
Now,
In ΔCDB,
R and Q are the mid points of CD and BC, respectively.
⇒ QR || BD
also,
P and S are the mid points of AD and AB, respectively.
⇒ PS || BD
⇒ QR || PS
PQRS is a parallelogram.
also, ∠PQR = 90°
Now,
In PQRS,
RS = PQ and RQ = SP from (i) and (ii)
∠Q = 90°
PQRS is a rectangle.

Q3. ABCD is a rectangle and P, Q, R and S are mid-points of the sides AB, BC, CD and DA respectively. Show that the quadrilateral PQRS is a rhombus.
Ans:
Given: ABCD is a rectangle and P, Q, R and S are mid-points of the sides AB, BC, CD and DA respectively.
To prove: The quadrilateral PQRS is a rhombus.
Proof: Let us join AC and BD.
In ΔABC, P and Q are the mid-points of AB and BC respectively.
∴ PQ || AC and PQ = 1/2 AC (Mid-point theorem) … (1)
Similarly, in ΔADC , SR ||  AR, SR = 1/2 AC (Mid-point theorem) … (2)
Clearly,  PQ || SR and  PQ = SR
It is a parallelogram because one pair of opposing sides of quadrilateral PQRS is equal and parallel to each other.
∴ PS || QR , PS = QR (Opposite sides of parallelogram) … (3)
In ΔBCD, Q and R are the mid-points of side BC and CD respectively.
∴ QR || BD, QR = 1/2 BD (Mid-point theorem) … (4)
Also, the diagonals of a rectangle are equal.
∴ AC = BD … (5)
By using Equations (1), (2), (3), (4), and (5), we obtain
PQ = QR = SR = PS
So, PQRS is a rhombus

Q4. ABCD is a trapezium in which  AB || DC , BD is a diagonal and E is the mid – point of AD. A line is drawn through E parallel to AB intersecting BC at F (see the given figure). Show that F is the mid-point of BC.

Ans: Given: ABCD is a trapezium in which AB || DC , BD is a diagonal and E is the mid – point of AD. A line is drawn through E parallel to AB intersecting BC at F.
To prove: F is the mid-point of BC.
Proof: Let EF intersect DB at G.
We know that a line traced through the mid-point of any side of a triangle and parallel to another side bisects the third side by the reverse of the mid-point theorem.
In  ΔABD, EF || AB and E is the mid-point of AD.
Hence, G will be the mid-point of DB.
As  EF || AB, AB || CD,
∴ EF || CD (Two lines parallel to the same line are parallel)
In  ΔBCD, GF || CD and G is the mid-point of line BD.
So, by using the converse of mid-point theorem, F is the mid-point of BC.

Q5. In a parallelogram ABCD, E and F are the mid-points of sides AB and CD respectively (see the given figure). Show that the line segments AF and EC trisect the diagonal BD.
Ans: Given: In a parallelogram ABCD, E and F are the mid-points of sides AB and CD respectively to prove: The line segments AF and EC trisect the diagonal BD.

To Prove: The line segments AF and EC trisect the diagonal BD.

Proof: ABCD is a parallelogram.
AB || CD
And hence, AE || FC
Again, AB = CD (Opposite sides of parallelogram ABCD)
1/2 AB = 1/2 CD
AE = FC (E and F are mid-points of side AB and CD)
In quadrilateral AECF, one pair of opposite sides (AE and CF) is parallel and the same as each other. So, AECF is a parallelogram.
∴ AF || EC (Opposite sides of a parallelogram)
In  ΔDQC, F is the mid-point of side DC and  FP || CQ (as  AF || EC ).
So, by using the converse of mid-point theorem, it can be said that P is the mid-point of DQ.
∴ DP= PQ … (1)
Similarly, in ΔAPB , E is the mid-point of side AB and EQ || AP (as  AF || EC ).
As a result, the reverse of the mid-point theorem may be used to say that Q is the mid-point of PB.
∴ PQ = QB … (2)
From Equations (1) and (2),
DP = PQ= BQ
Hence, the line segments AF and EC trisect the diagonal BD.

Q6. ABC is a triangle right angled at C. A line through the mid-point M of hypotenuse AB and parallel to BC intersects AC at D. Show that
(i) D is the mid-point of AC
(ii) MD ⊥ AC
(iii) CM = MA = 1/2 AB
Ans: Given: ABC is a triangle right angled at C. A line through the mid-point M of hypotenuse AB and parallel to BC intersects AC at D.
(i) In ΔABC,
It is given that M is the mid-point of AB and MD || BC.
Therefore, D is the mid-point of AC. (Converse of the mid-point theorem)
(ii) As DM || CB and AC is a transversal line for them, therefore,(Co-interior angles)
(iii) Join MC.
In ΔAMD and  ΔCMD,
AD = CD (D is the mid-point of side AC)
∠ADM = ∠CDM (Each)
DM = DM (Common)
∴ ΔAMD ≅ ΔCMD (By SAS congruence rule)
Therefore,
AM = CM (By CPCT)
However,
AM = 1/2 AB (M is mid-point of AB)
Therefore, it is said that CM = AM = 1/2 AB.
